4 inch Mini Blower

Introducing Ez~Air Toyo fans, the trusted choice across the electrical and automation sectors for numerous years. These fans offer a harmonious blend of silence and effectiveness, ensuring optimal cooling for control cabinets as well as electrical and electronic components. Crafted in a compact axial design, these fans excel in delivering ample airflow while maintaining a balanced pressure environment.

Main features

Frame

Die cast aluminum painted black or plastic with fiber glass filled UL
94V-0

Impeller

Plastic with fiber glass filled UL94V-0

Motor

Shaded pole motor with impedance protection

Bearing

Sleeve bearing (recommended for mounting in vertical position) or Ball
bearing (installation in any direction)

Operating Environment

Sleeve bearing: Temperature -10..70 °C, humidity 20..80 RH%. Ball
bearing: Temperature -20..80 °C, humidity 20..85 RH%

Specifications

Model	Voltage	Flow Rate (CFM)	Power (W)	Speed (RPM)	Static Pressure (H₂O)	Noise (dBA)	Bearing Type	Dimensions (mm)	Termination

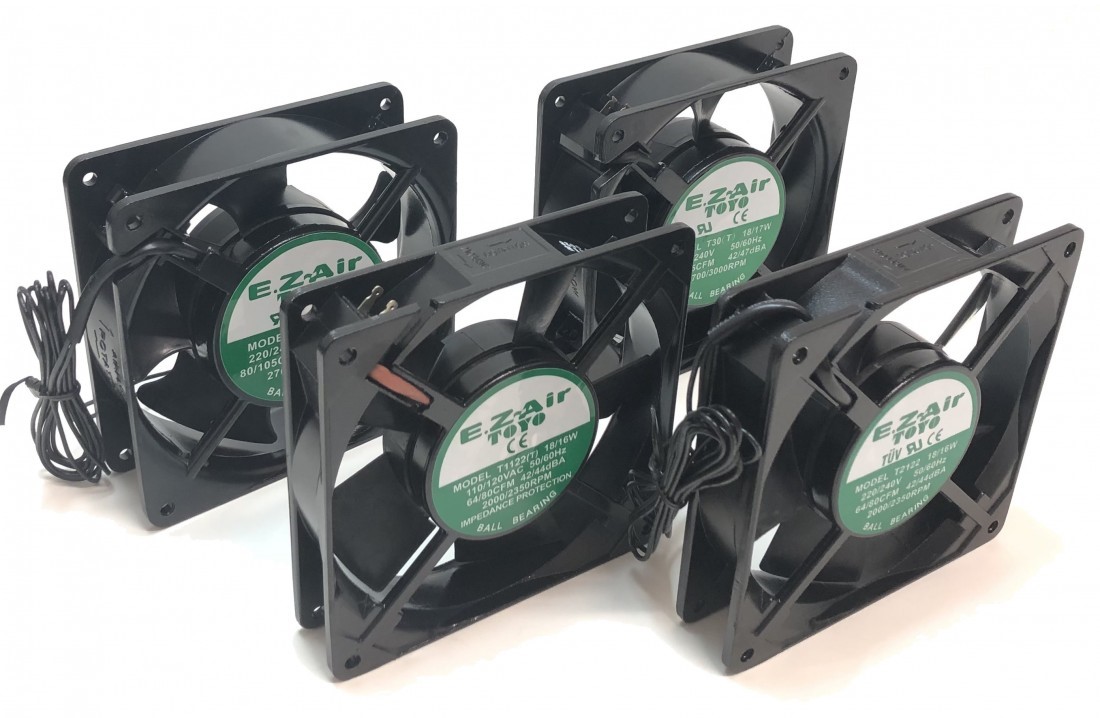

T30	220/240VAC	80/105	18/17	2700/3000	0.23/0.28	42/47	Ball	120x120x38	1m wire
T30(T)	220/240VAC	80/105	18/17	2700/3000	0.23/0.28	42/47	Ball	120x120x38	Pin terminal
T30S	220/240VAC	80/105	18/17	2700/3000	0.23/0.28	42/47	Sleeve	120x120x38	1m wire
T30S(T)	220/240VAC	80/105	18/17	2700/3000	0.23/0.28	42/47	Sleeve	120x120x38	Pin terminal
T15	110/120VAC	80/105	18/17	2700/3000	0.23/0.28	42/47	Ball	120x120x38	1m wire
T15(T)	110/120VAC	80/105	18/17	2700/3000	0.23/0.28	42/47	Ball	120x120x38	Pin terminal
T15S	110/120VAC	80/105	18/17	2700/3000	0.23/0.28	42/47	Sleeve	120x120x38	1m wire
T15S(T)	110/120VAC	80/105	18/17	2700/3000	0.23/0.28	42/47	Sleeve	120x120x38	Pin Terminal
T2122	220/240VAC	64/80	18/16	2000/2350	0.20/0.23	42/44	Ball	120x120x25.4	1m wire
T2122(T)	220/240VAC	64/80	18/16	2000/2350	0.20/0.23	42/44	Ball	120x120x25.4	Pin terminal
T1122	110/120VAC	64/80	18/16	2000/2350	0.20/0.23	42/44	Ball	120x120x25.4	1m wire
T1122(T)	110/120VAC	64/80	18/16	2000/2350	0.20/0.23	42/44	Ball	120x120x25.4	Pin terminal

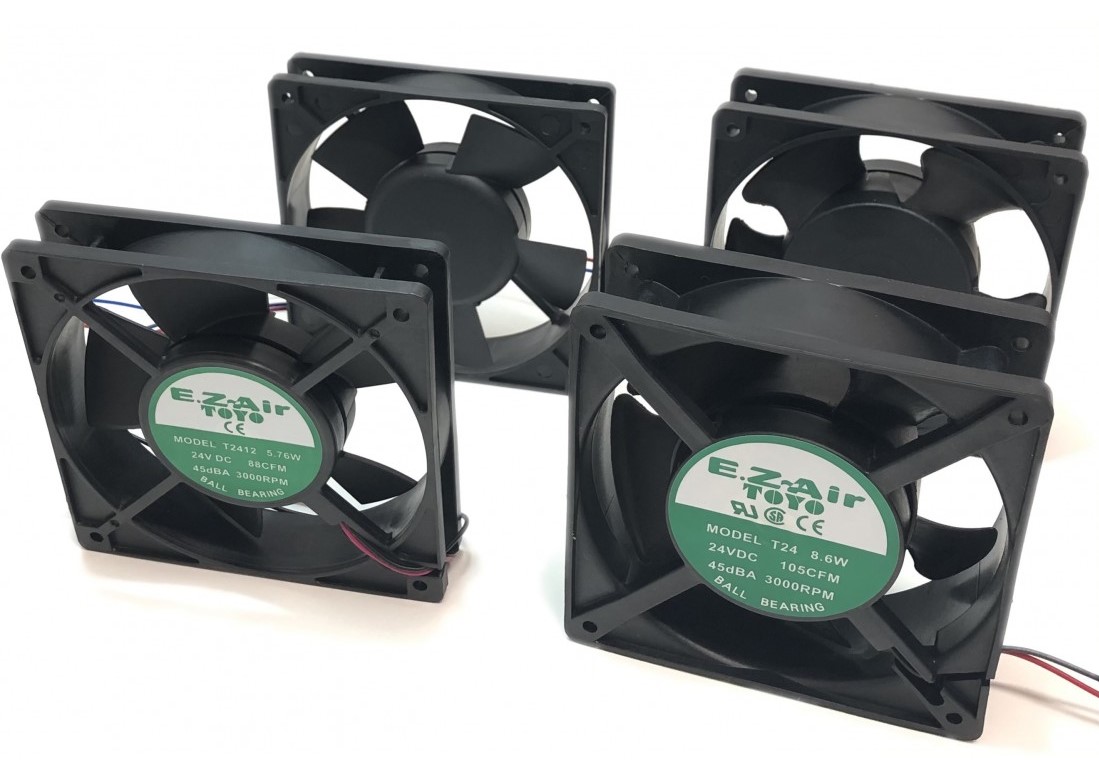

T24	24VDC	105	8.6	3000	0.28	45	Ball	120x120x38	1m wire
T12	12VDC	105	7.2	3000	0.28	45	Ball	120x120x38	1m wire
T2412	24VDC	88	5.76	3000	0.20	45	Ball	120x120x25.4	0.3m wire
T2412-D12	12VDC	88	4.32	3000	0.20	45	Ball	120x120x25.4	0.3m wire

Airflow Charts

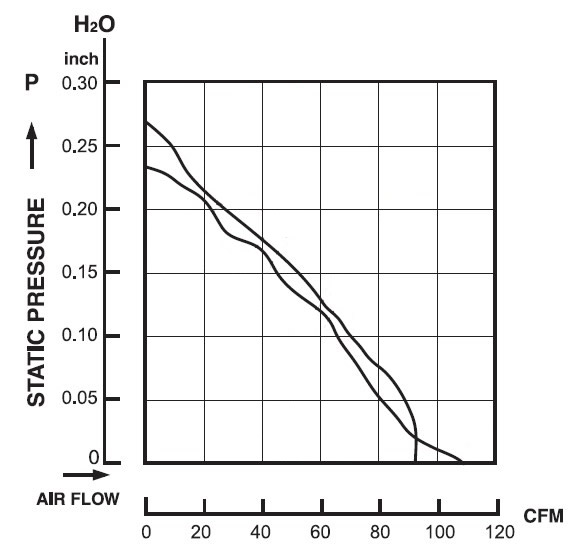

T15/T30 Airflow chart

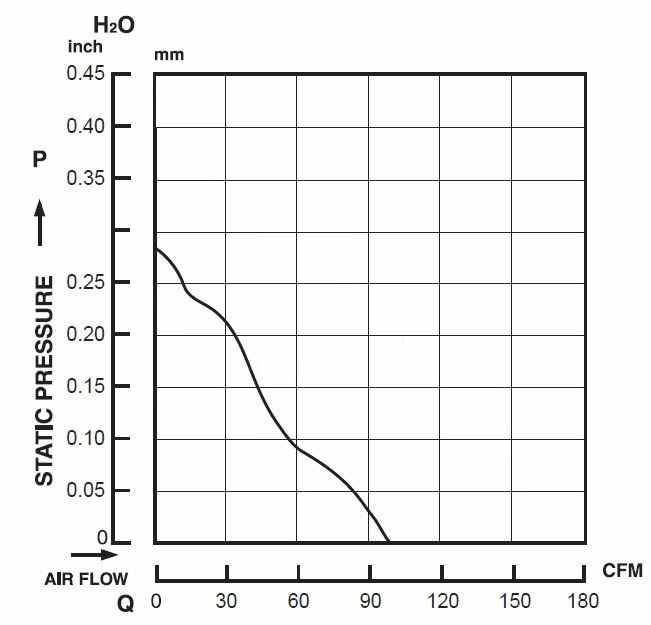

T12/T24 Airflow chart

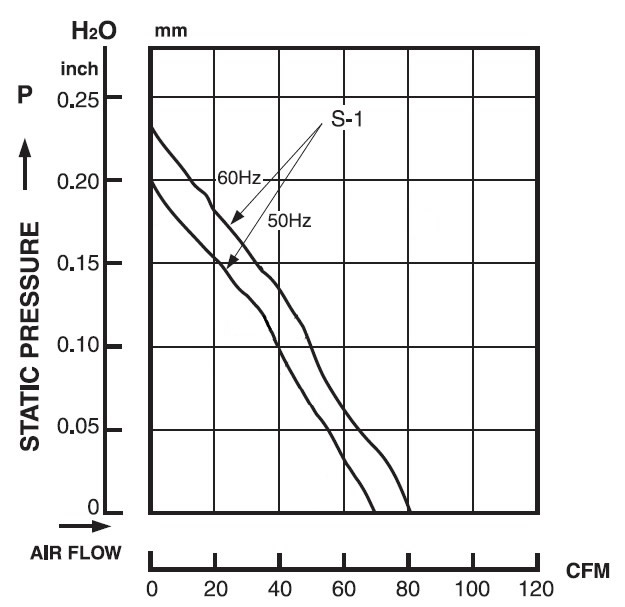

T2122 Airflow chart

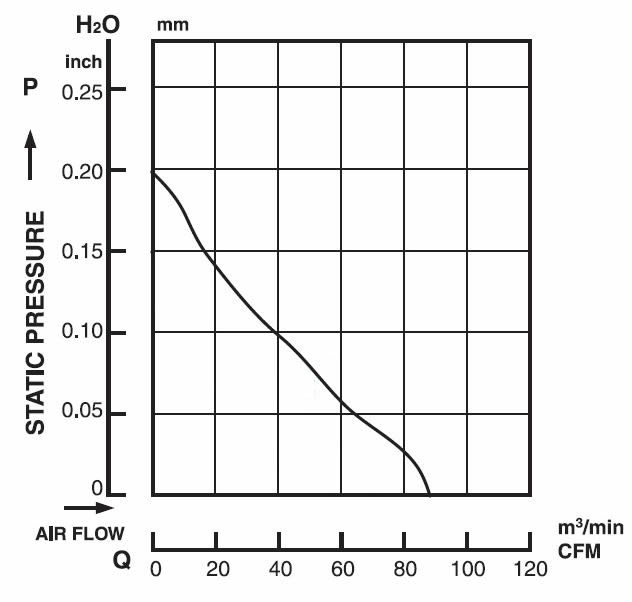

T2412 Airflow chart

Dimensions

T15/30 Dimensions

T1122/T2122 Dimensions

T12/T24 Dimensions

T2412 Dimensions
