D.C NPN / PNP type
◾ UP8RM / UP8RD / UP12RM / UP12RD
|

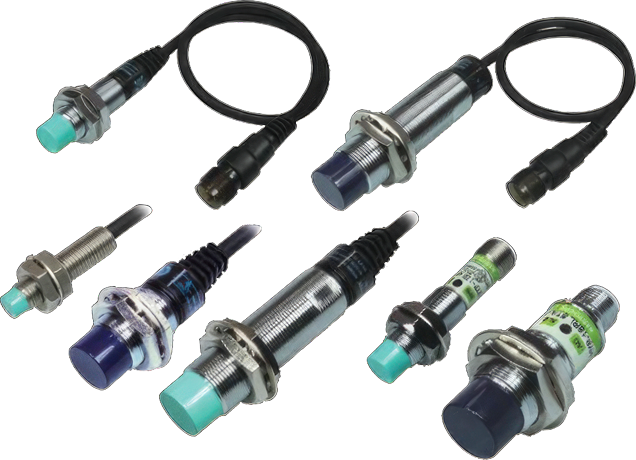

Appearance |
NPN |
 |
 |
 |
 |
|---|---|---|---|---|---|
|
PNP |
 |
 |
 |
 |
|
|
Model |
NPN |
UP8RM-1.5N□□ |
UP8RD-2N□□ |
UP12RM-2N□□ |
UP12RD-4N□□ |
|
PNP |
UP8RM-1.5P□□ |
UP8RD-2P□□ |
UP12RM-2P□□ |
UP12RD-4P□□ |
|
|
Size |
M8 |
M12 |
|||
|
Shield |
Shield |
Non shield |
Shield |
Non shield |
|
|
Standard sensing object (㎜) |
Iron 8 X 8 X 1 |
Iron 12 X 12 X 1 |
|||
|
Sensing distance |
1.5 mm |
2 mm |
2 mm |
4 mm |
|
|
Setting distance |
0 ~ 1.2 mm |
0 ~ 1.6 mm |
0 ~ 1.6 mm |
0 ~ 3.2 mm |
|
|
Hysteresis |
Less than 10 % of sensing distance |
||||
|
Response frequency |
800 Hz |
800 Hz |
400 Hz |
||
|
Power voltage |
12 V – 24 V d.c. (Usable voltage range 5 – 35 V d.c.) |
||||
|
Control output |
200 mA Max. (Resistive load) |
||||
|
Residual voltage |
Max. 1.5 V |
||||
|
Current consumption |
Max. 6 mA |
||||
|
Operation indication |
Red LED |
||||
|
protection circuit |
Power reversely connected protective circuit, surge protective circuit and over current protective circuit are built in. |
||||
|
Ambient temperature |
-25 ~ 70 ℃ (Less than ± 10 % of sensing distance at temperature 20 ℃) |
||||
|
Ambient humidity |
35 ~ 85 % R.H. |
||||
|
Degree of protection |
IP67 (IEC standard) |
||||
|
Vibration resistance |
10 – 55 ㎐ (cycle 1 min), double amplitude : 1.5 ㎜ 2 hours for each of X · Y · Z directions |
||||
|
Dielectric strength |
1500 V a.c. 50 / 60 ㎐ for 1 min (between the recharging part and case) |
||||
|
Shock resistance |
500 m/s² 3 times to each, X · Y · Z directions |
||||
|
Insulation resistance |
Min. 50 MΩ (500 V d.c. mega standard) |
||||
|
Connection structure |
▪Cable type (standard cable length 2 m) ▪Connector Cable type ▪Connector type |
||||
|
Material |
▪Case : stainless ▪Sensing surface : PBT ▪Cable holder : polyester elastomer |
▪Case : brass (chrome plating) ▪Sensing surface : PBT ▪Cable holder : polyester elastomer |
|||
|
Certification |
 |
||||
|
Weight |
Cable |
60g |
70g |
||
|
Connector Cable type |
None |
30g |
|||
|
Connector |
None |
30g |
|||
