    Zensor HT1 humidity and temperature transmitter

    Category:

      Introducing the Zensor HT1 humidity and temperature sensor, a versatile solution catering to a diverse array of temperature and humidity monitoring requirements. Engineered with a strong emphasis on precision and enduring reliability, this sensor is optimally suited for a wide spectrum of applications, encompasses HVAC process monitoring, air conditioning oversight, environmental ventilation control, as well as surveillance in buildings, factories, hospitals, clean rooms and other manufacturing facilities.

      This sensor offers a choice between two analog outputs or Modbus RS-485, affording users flexibility in data communication. Additionally, the sensor probe is constructed from durable PC material, guaranteeing resilience and longevity, even in the harshest industrial environments.

      Specifications

      Power Supply

      18…32VDC

      Operating Conditions

      -20…60°C, 5-95% RH (non-condensing)

      Case Material

      Polycarbonate

      IP Rating (exclude sensor)

      65

      Humidity Meaasuring Range

      10…95% RH

      Humidity Accuracy

      ±2% or ±3% (@0.3°C)

      Response Time

      Less than 10 Sec

      Temperature Measuring Range

      0…50°C or -20…60°C

      Temperature Accuracy

      ±0.2°C @25°C

      Model Selection



      Model

      HT101 –

      HT102 –

      HT103 –

      Wall Mount

      Duct Mount

      Separate Probe

      Humidity Accuracy

      2

      3

      ±2%RH (@0.3°C)

      ±3%RH (@0.3°C)

      Humidity Signal Output

      V10

      A4

      RS

      0-10V (3 wire)

      4-20mA (2 wire)

      Modbus (RS485)

      Temperature Signal Output

      V10

      A4

      RS

      PT1K

      PT1

      0-10V (3 wire)

      4-20mA (2 wire)

      Modbus (RS485)

      PT1000, ±0.2°C@25°C

      PT100, ±0.2°C@25°c;

      Temperature Range

      0

      1

      2

      None

      0…50°C

      -20 … 60°C

      LCD Indicator

      0

      1

      None

      LCD Display

      HT101

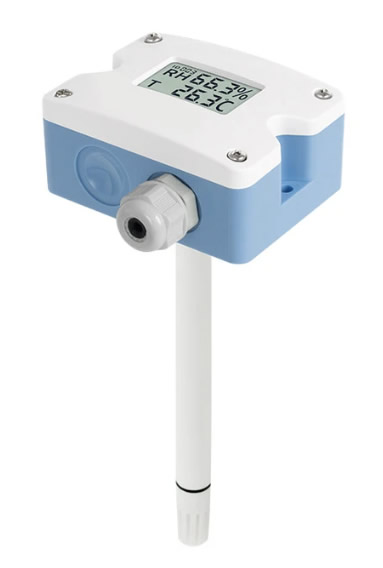

      HT102

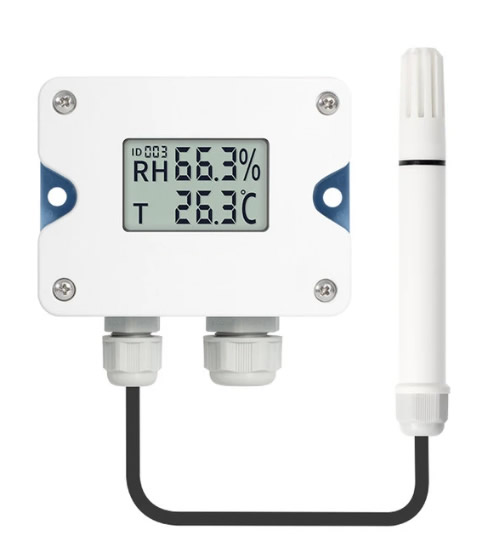

      HT103

      Dimensions (mm)

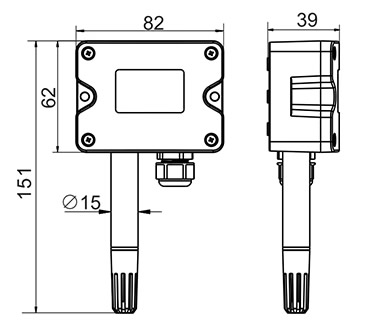

      HT101 Dimensions

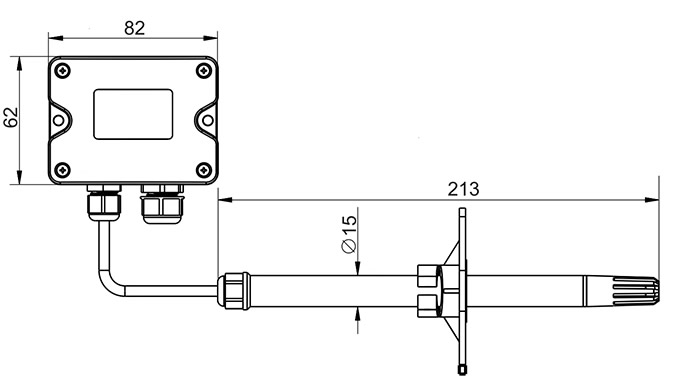

      HT103 Dimensions

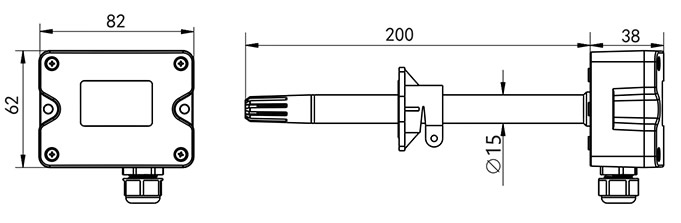

      HT102 Dimensions
