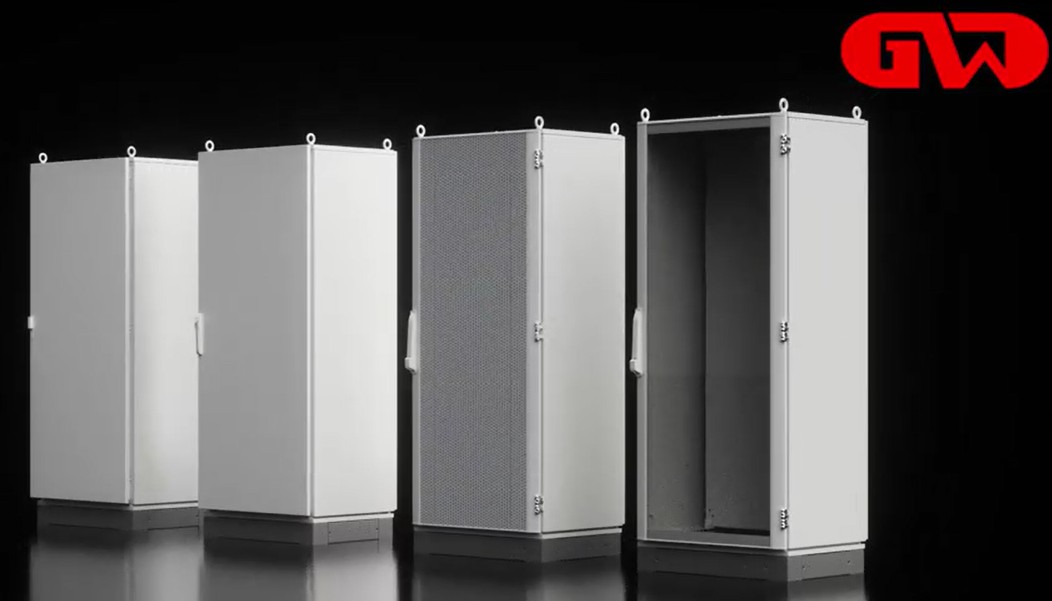

AR9000 Floor-Standing Metal Cabinets
The AR9000 series features a durable 9-fold profile design that offers exceptional strength and rigidity. Its frame is engineered without welding at the top and bottom, instead utilizing removable screws in the vertical profiles to enhance structural integrity and allow greater flexibility during installation and maintenance.
Finished in a high-quality, thermosetting epoxy polyester powder coating, the cabinets provide long-lasting protection against wear and corrosion. Available in a textured finish with standard color options of RAL 7035 (light grey) or RAL 7032 (pebble grey).
Models
 |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|
| MODEL | SIZE(W H D) mm | 9-FOLDED PROFILES | TOP COVER & BOTTOM | FRONT DOOR BACK PANEL | FRONT DOOR | BACK PANEL | MOUNTING PLATE | SIDE PANELS |
| AR9 1644K | 400X1600X400 | F16 | TCB44 | FB0164 | F0164 | BD164 | MP164 | ARSP164 |
| AR9 1645K | 400X1600X500 | F16 | TCB45 | FB0164 | F0164 | BD164 | MP164 | ARSP165 |
| AR9 1646K | 400X1600X600 | F16 | TCB46 | FB0164 | F0164 | BD164 | MP164 | ARSP166 |
| AR9 1664K | 800X1600X400 | F16 | TCB64 | FB0166 | F0166 | BD166 | MP166 | ARSP164 |
| AR9 1665K | 800X1600X500 | F16 | TCB65 | FB0166 | F0166 | BD166 | MP166 | ARSP165 |
| AR9 1666K | 800X1600X600 | F16 | TCB66 | FB0166 | F0166 | BD166 | MP166 | ARSP166 |
| AR9 1667K | 800X1600X400 | F16 | TCB64 | FB0166 | F0166 | BD166 | MP166 | ARSP164 |
| AR9 1668K | 800X1600X500 | F16 | TCB65 | FB0166 | F0166 | BD166 | MP166 | ARSP165 |
| AR9 1669K | 800X1600X600 | F16 | TCB66 | FB0166 | F0166 | BD166 | MP166 | ARSP165 |
| AR9 1645K | 400X1600X400 | F16 | TCB45 | FB0164 | F0164 | BD164 | MP164 | ARSP165 |
| AR9 1646K | 400X1600X500 | F16 | TCB46 | FB0164 | F0164 | BD164 | MP164 | ARSP165 |
| AR9 1647K | 400X1600X600 | F16 | TCB45 | FB0164 | F0164 | BD164 | MP164 | ARSP165 |
| AR9 1648K | 800X1600X400 | F16 | TCB64 | FB0166 | F0166 | BD166 | MP166 | ARSP165 |
| AR9 1669K | 800X1600X500 | F16 | TCB65 | FB0166 | F0166 | BD166 | MP166 | ARSP165 |
| AR9 1668K | 800X1600X600 | F16 | TCB64 | FB0166 | F0166 | BD166 | MP166 | ARSP165 |
| AR9 1669K | 800X1600X400 | F16 | TCB64 | FB0166 | F0166 | BD166 | MP166 | ARSP165 |
| AR9 1684K | 800X1800X500 | F16 | TCB65 | FB0166 | F0166 | BD166 | MP166 | ARSP165 |
| AR9 1685K | 800X1800X500 | F16 | TCB65 | FB0166 | F0166 | BD166 | MP166 | ARSP165 |
| AR9 1686K | 800X1800X600 | F16 | TCB65 | FB0166 | F0166 | BD166 | MP166 | ARSP165 |
| AR9 1687K | 800X1800X500 | F16 | TCB65 | FB0166 | F0166 | BD166 | MP166 | ARSP165 |
| AR9 1610HK | 1000X1800X400 | F18 | TCB104 | FB01610 | F01810 | BD1810 | MP1810 | ARSP184 |
| AR9 1610HK | 1000X1800X500 | F18 | TCB105 | FB01610 | F01810 | BD1810 | MP1810 | ARSP185 |
| AR9 1610HK | 1000X1800X600 | F18 | TCB105 | FB01610 | F01810 | BD1810 | MP1810 | ARSP186 |
| AR9 2044K | 400X2000X400 | F20 | TCB44 | FB0204 | F0204 | BD204 | MP204 | ARSP204 |
| AR9 2045K | 400X2000X600 | F20 | TCB45 | FB0204 | F0204 | BD204 | MP204 | ARSP205 |
| AR9 2064K | 600X2000X400 | F20 | TCB44 | FB0206 | F0206 | BD206 | MP206 | ARSP204 |
| AR9 2065K | 600X2000X600 | F20 | TCB45 | FB0206 | F0206 | BD206 | MP206 | ARSP205 |
| AR9 2066K | 600X2000X600 | F20 | TCB45 | FB0206 | F0206 | BD206 | MP206 | ARSP206 |
| AR9 2067K | 600X2000X600 | F20 | TCB45 | FB0206 | F0206 | BD206 | MP206 | ARSP206 |
| AR9 2068K | 800X2000X400 | F20 | TCB44 | FB0206 | F0206 | BD206 | MP206 | ARSP204 |
| AR9 2069K | 800X2000X600 | F20 | TCB45 | FB0206 | F0206 | BD206 | MP206 | ARSP205 |
| AR9 2068K | 800X2000X600 | F20 | TCB45 | FB0206 | F0206 | BD206 | MP206 | ARSP206 |
| AR9 2010HK | 1000X2000X400 | F20 | TCB104 | FB02010 | F02010 | BD2010 | MP2010 | ARSP204 |
| AR9 2010HK | 1000X2000X600 | F20 | TCB105 | FB02010 | F02010 | BD2010 | MP2010 | ARSP205 |
| AR9 2264K | 800X2200X400 | F22 | TCB64 | FB0226 | F0226 | BD226 | MP226 | ARSP224 |
| AR9 2265K | 800X2200X600 | F22 | TCB64 | FB0226 | F0226 | BD226 | MP226 | ARSP225 |
| AR9 2268K | 800X2200X600 | F22 | TCB64 | FB0226 | F0226 | BD226 | MP226 | ARSP226 |
| AR9 2269K | 800X2200X600 | F22 | TCB64 | FB0226 | F0226 | BD226 | MP226 | ARSP228 |
| AR9 2268K | 800X2200X400 | F22 | TCB64 | FB0226 | F0226 | BD226 | MP226 | ARSP224 |
| AR9 2269K | 800X2200X600 | F22 | TCB64 | FB0226 | F0226 | BD226 | MP226 | ARSP225 |
| AR9 2210HK | 1000X2200X400 | F22 | TCB104 | FB02210 | F02210 | BD2210 | MP2210 | ARSP224 |
| AR9 2210HK | 1000X2200X600 | F22 | TCB105 | FB02210 | F02210 | BD2210 | MP2210 | ARSP225 |
| AR9 2210HK | 1000X2200X600 | F22 | TCB106 | FB02210 | F02210 | BD2210 | MP2210 | ARSP226 |
